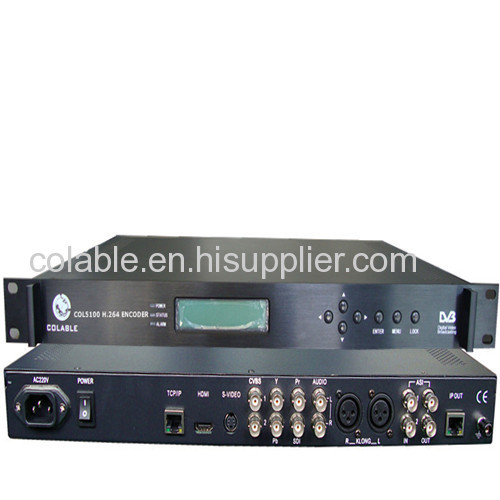

Enlarge HD encoder

HD encoder

Price: 1200.0~3600.0 USD
Payment Terms: T/T,L/C,WU
Special Groups: encoder (1)
Place of Origin: , China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: COL5100
Production Capacity: 100000
Delivery Date: 2~5 days
Means of Transport: Air
Packing: carton
Brand Name: COLABLE

COL5100 H.264 Encoder is a new generation broadcasting level video and audio encoding equipment from Colable Electronics

Specifications
Video system;NTSC(525/60),PAL(625/50)(optional)
Connector;BNC
Impedance;75W ,unbalance
Frequency;25Hz~5.75MHz
Level;1.0Vp-p
Quantization;12bits,subject to CCIR-601
Sampling frequency;27MHz
Connector;Mini-DIN 4
Impedance;75W,unbalance
Y signal level;1.0Vp-p
Y signal frequency;25Hz~5.75MHz
C signal level;0.285Vp-p
C signal frequency;25Hz~2.75MHz
Quantization;12bits(Y),12bits(C),subject to CCIR-601
Sampling frequency;54MHz
Video standard: Subject to HDMI v 1.3
Video standard: Subject to HDMI 1.3, S/PDIF (IEC90658) compatible
Connector;BNC
Impedance;75
Standard;Subject to SMPTE 259/292M protocol
Connector;BNC (unbalance) and XLR (balance)
Impedance;600W ,balance or unbalance
Input;One way stereo or two ways independent mono-channel audio signals
Output rate;64kbps~384 kbps
Quantization;16bits
Sampling frequency;48kHz,
 MPEG-2 TS input interface
Interface characteristic: meets DVB ASI standard
Connector;BNC
impedance;75
packet format;188bit
data rate;270Mbps
  H.264Video code compressing
.Meeting ISO/IEC14496-10(H.264/AVC)
Output rate:0.5-20Mbps
Support VBR/CBR coding
 DVB standard based TS,PS(program stream) can be selected
 Video Format
 Code;  525i\625i\720(60P)\720(50P)\1080(50I)\1080(60I)
Transcode;525i\625i\720(60P)\720(50P)\1080(50I)\1080(60I)
 Digital interfaces
   DVB based ASI interfaces can be used.
Interface characteristics: DVB ASI standard
Connector;BNC
Impedance;75
Packet format;188 bytes
Data rate;1-30Mbps
 IP data interface (optional)
Interface characteristic : IP output interface(100M)
 Protocol;UDP
  Status control
Video input signal selection.
Composite video\S-Video\YpbPr HDMI and SDI
  Network management interface
Ethernet interface;IEEE802.3 Ethernet,RJ45 interface.
Software protocol;SNMP protocol
 Power off status saving
The encoder can save power off status, so it can automatically restart when power supply is ready again.
 Power supply
Voltage.. .90V~250VAC
Frequency....50Hz±2%
Power consumption 20W
  Operation temperature..+5°C~45°C
  Storage temperature...-25°C~+55°C
  Relative humidity        10~75%
 Radiation and Safety standards
Meeting GB13837-92 and GB8898-88
Dimension: 44.5 mm(1U)×483mm(19″)×300mm
